How to Connect an Old TV Antenna to Your Digital TV

Cutting the cable (or ditching the dish) can be a great way to save money. A lot of great content is accessible via the Internet, from sources like YouTube, Netflix, iTunes, and others. But there may be times when you’ll miss your local channels, whether for emergency news and notifications or just local programming. If you live in a rural area (or a crowded urban area) where rabbit-ears just don’t cut it, your house might already have a medium or large TV antenna installed in the attic or on the roof. But will your old antenna work with modern, digital TV?

A Word About Antennas

You might’ve heard of “HDTV” or “digital” TV antennas. In reality, though antennas can be designed for better reception (producing few or no digital artifacts), there’s really no such thing as a digital TV antenna. TV antennas don’t differentiate between analog and digital signals – they’re just collections of metal rods that pick up UHF and VHF transmissions at certain frequencies. The antenna doesn’t care what it’s picking up; it just passes signals along to the tuner (be it a tuner box or an integrated tuner inside your TV), which decodes them into a format that can be displayed on your TV.

While newer antennas might be better-designed, older antennas may work just as well, provided they’re large enough and (if they’re directional) positioned correctly. In our case, the antenna was a large, 1970s multi-directional behemoth that was hanging in our attic, unused for decades. However, my dad remembered it working quite well for analog TV, before cable was available in our area, so we decided it was worth the risk to try wiring it back up.

What You’ll Need

Depending on your house’s structure and other factors, you may need some hand tools. But for the antenna wiring itself, you’ll only need two things:

  1. A balun (or “impedance matching transformer” as Radio Shack calls it)
  2. A length of RG6 coaxial cable (I went with quad-shielded)

A balun is a device that converts between an unbalanced signal and a balanced one. For TV wiring, it converts old 300-ohm twin-lead wire to new 75-ohm coaxial wire. If you have existing twin-lead wiring (in good condition) run to your TV, you can just use a balun where the twin-lead ends and a short length of coax to connect it to the TV. Otherwise, coaxial generally holds up better.

There are many arguments about twin-lead vs. coaxial – I’ll leave it to you to do your research on which would be better to use in your circumstances. In my case, the twin-lead had been cut halfway down the side of the house, and it wasn’t even running towards the family room (where our new TV is) anyway, so we went for coax.

The Antenna

The first step in connecting the antenna to the TV is first getting to the antenna. If yours is roof-mounted, you’ll need to exercise some caution. Attic-mounted antennas (like ours) are considerably easier to get at, but our attic doesn’t have floorboards, so walking over to the antenna proved to be a delicate maneuver.

Our antenna uses two bolts with wing nuts to hold the twin leads. This is where we attached the balun.

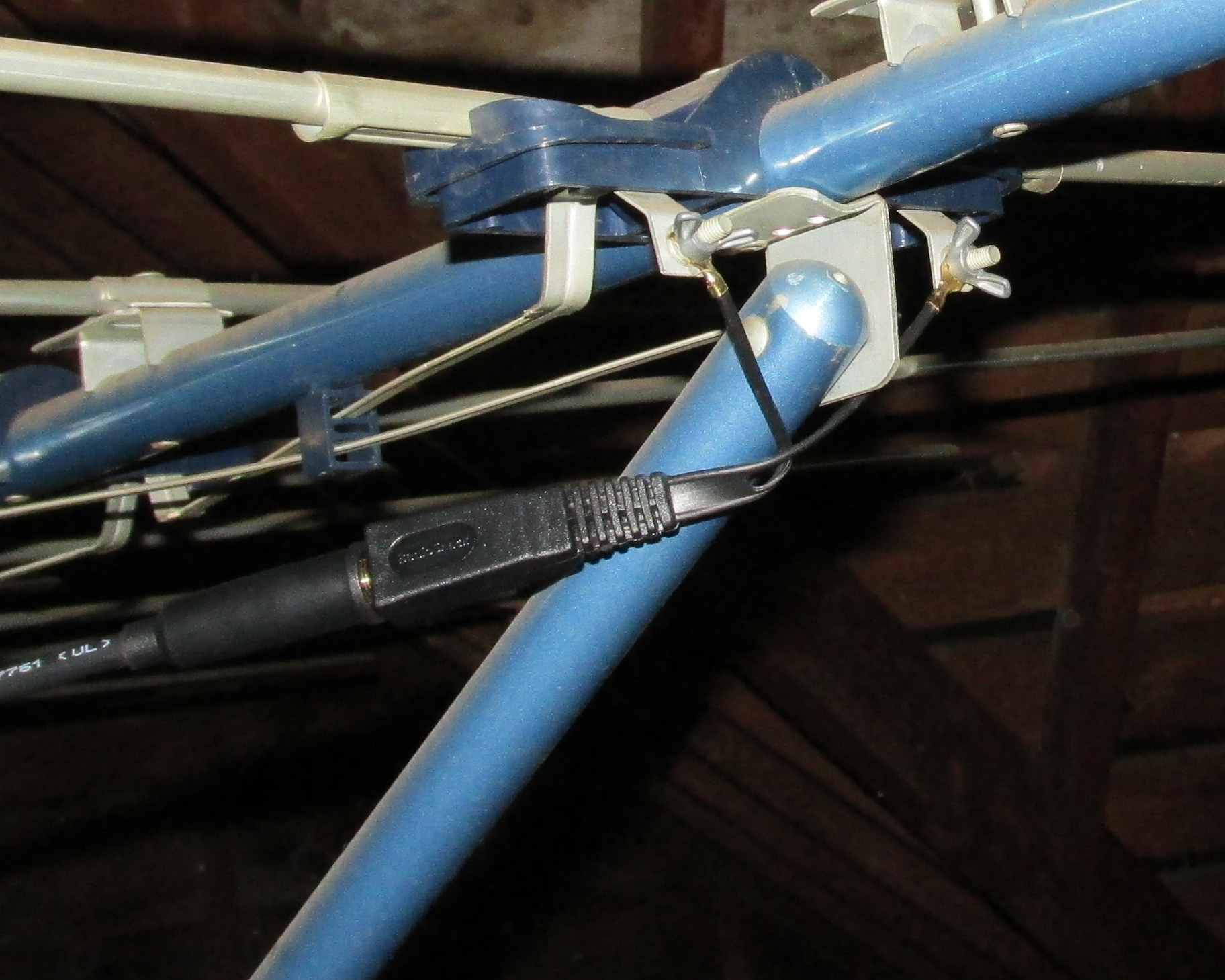

Our old blue antenna, attached to the new balun and coaxial cable

Our old blue antenna (this is only a small part of it), attached to the new balun and coaxial cable

Under the right circumstances, a pre-amplifier (which boosts the signal) might be necessary. However, as pre-amps can also boost noise, it’s not recommended to use one unless you need to. In my case, our antenna was large enough that I didn’t think we’d need a pre-amp.

Routing

Here’s the tricky part: routing the cable down to the TV. I won’t go into too much detail here, as every home is different, but in our case, the cable could just run down the chopped-off chimney remnant in the attic…

RG6 coaxial cable running down our chimney

RG6 coaxial cable running down our chimney

…and out through a vent in the chimney down in the basement. We had to tie a pair of pliers to the cable to weight it enough to make it go down the chimney, as it was cold and the cable kept coiling.

What goes in must come out!

What goes in must come out! This vent has a cap that goes over it – we carefully reinstalled the cap after running the coax.

From there, we had to run it through the ceiling of the basement, around a cold air return vent, and out into the crawlspace. At the very end of the crawlspace, we drilled a hole behind the TV for the cable to run up through.

Success

We connected the other end of the coaxial cable to the TV, scanned for channels, and instead of the usual six we’d had with smaller antennas (three stations with high transmit power, plus subchannels), we found 21 channels, including several HD channels (KCCI supposedly came through in 1080p, though our TV is only 720p).

Clear, vivid HDTV, thanks to our old antenna and a very long cable.

Clear, vivid HDTV, thanks to our old antenna and a very long cable.

KCCI’s transmitter is located (along with several other towers) about an hour (50 miles) south of where we live. We actually picked up two zones of Iowa Public Television – KDIN in Des Moines and KTIN in Fort Dodge!

Happy surfing!
