The Practical Mac

Configuring Your OS X Firewall

- 2002.03.05 - Tip Jar

Last week, The Practical Mac explained how to set up a basic firewall using the shareware program BrickHouse. BrickHouse provides an easy-to-use graphical interface to activate and configure the firewall which is built into OS X. Unfortunately, the default settings don't necessarily meet the needs of every user. This article will show you how to tweak your firewall settings to meet your needs.

Microsoft Office v.X

Microsoft built into Office v.X an anti-pirating "feature" which can pose a serious security risk in a network environment. When any Office application is launched, it polls other computers on the network in an attempt to discover whether any other Office installations with the same serial number are present on the network. If another installation with an identical serial number is found, the application displays a message to this effect and won't launch.

Using this mechanism, it is possible for a hacker to create packets and direct them at a particular Office v.X installation, causing any open Office applications to shut down immediately, losing any work in progress. To thwart such an attack, Microsoft recommends, among other things, disabling both incoming and outgoing traffic on UDP port 2222.

Most users would scratch their head and say, "How do I do that?" The Microsoft article certainly does not explain how to do this. Have no fear - BrickHouse allows you to easily apply this and other filters to your firewall.

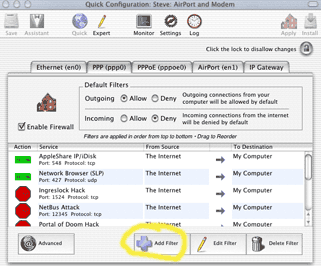

Launch BrickHouse, select Quick Configuration, and click on the tab of the network service you want to add the filter to (AirPort, ethernet, etc.). Select Add Filter from the menu at the bottom of the screen.

Quick Configuration

The Filter Details screen will appear. In the dropdown box beside Action select Deny. Choose Custom Service and UDP protocol. In the Port box, erase the numbers there and enter 2222. Make sure the Source is My Computer and the Destination is The Internet. Click OK.

Filter Details

This will prevent your Mac from broadcasting on UDP port 2222.

Now repeat the procedure, except this time change Source to The Internet and Destination to My Computer. Click OK.

Filter Details

This will prevent your Mac from receive and responding to any packets directed to UDP port 2222.

Over time, you are bound to encounter other programs which will require you to either open or close certain ports on your firewall. For instance, to receive QuickTime streaming video, you must open several ports. Among them is TCP port 554 for Real Time Streaming Protocol (RSTP). There may be other ports which need to be opened to enable QuickTime streams - refer to Apple Knowledge Base articles 60688, 42604, and 106307 for more information. To get you started, we will walk through opening up TCP port 554.

Go back to the Quick Configuration screen and select Add Filter. Change the dropdown menu boxes to Allow Custom Service TCP and change the port number to 554. Set the Source as The Internet and the Destination as My Computer. Click OK.

Filter Details

Repeat this step for other ports you wish open. To close ports, follow the same steps, but make sure the Action is set to Deny.

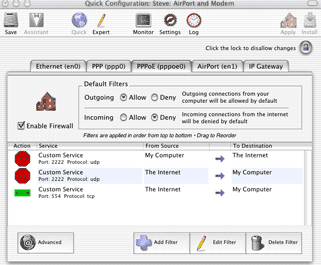

Back at the Quick Configuration screen, select Save, Apply, and Install to save your configuration and enable it to reload each time your Mac boots up.

Quick Configuration

If, after installing your firewall, you have applications which quit working, check the support Web site for your particular program. Most network-enabled programs have technical articles on their Web sites which will tell you what firewall ports need to be enabled in order for the program to work. LEM

Join us on Facebook, follow us on Twitter or Google+, or subscribe to our RSS news feed

Steve Watkins is the Vice President for Information Technology for a mid-sized bank, an attorney, and an Army Reserve JAG on extended active duty. He has been a Mac user for about 12 years. He has owned some PCs along the way - but always came back to the Mac. If you find his articles helpful, please consider making a donation to his tip jar.
