Power Mac 6100

FacebookTwitterLinkedInStumbleUponTumblrRedditDiggSlashdotWordPress

The 60 MHz Power Mac 6100 was the entry-level Power Mac when Apple introduced its first PowerPC models in March 1994. Built into the Quadra 610 case, the 6100 contains a PDS (processor direct slot) that can be converted to a NuBus slot with an adapter.

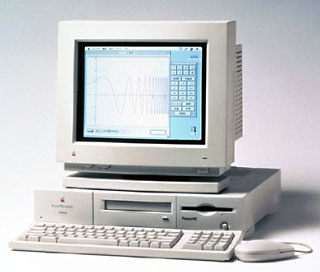

Power Macintosh 6100

The Power Macintosh 6100 was also marketed under the Performa brand, where its model numbers were 6110CD, 6112CD, 6115CD, 6116CD, 6117CD, 6118CD. It was also sold as the Apple Workgroup Server 6150.

To save money, the 6100 uses system memory for video (up to 615 KB, depending on resolution and bit-depth), not separate VRAM. Thus, one way to improve performance is to add a video card, either Apple AV card or a third-party one. (This also makes it possible to run two monitors.) Another is to add a 1 MB level 2 cache, as noted on our benchmark page. More details at PowerMac 6100 Graphics Performance.

The 6100 was boosted to 66 MHz in January 1995.

See our NuBus Video Card Guide for information on adding a NuBus video card, which requires a NuBus adapter.

Variants

6100av. Includes video-in and video-out. Supports 19″ and 21″ monitors. Has 2 MB VRAM. (AV card can be added to any 6100 with a free PDS slot.)

6100 DOS compatible. Card includes a 66 MHz 486DX2 CPU, SVGA output, and a single SIMM slot supporting up to 32 MB RAM. DOS card can share RAM with Macintosh, which is slower, or use its own memory. (DOS Compatibility Card can be added to any 6100 with a free PDS slot.)

Details

  • 6100/60 introduced 1994.03.14; discontinued 1995.01.03
    6100/60av introduced 1994.03.14; discontinued 1994.09.12
    6100/66 introduced 1995.01.03; discontinued 1995.10.14
    6100/66 DOS Compatible introduced 1995.01.03; discontinued 1996.05.18
    6100/66av introduced 1995.02.03; discontinued 1995.04.03
  • code name: Piltdown Man
  • requires System 7.1.2 through 9.1
  • CPU: 60 or 66 MHz PPC 601
  • bus: 30 or 33 MHz
  • performance, 6100/60
    • CPU 100, FPU 161, MacBench 5
    • 1.8 (relative to Centris 650)
    • 23.26, MacBench 2.0
    • 3.13, Speedometer 4
    • 22,989 Whetstones
  • performance, 6100/66
  • ROM: 4 MB
  • RAM: 8 MB, expandable to 264 MB using matching pairs of 80ns or faster 72-pin SIMMs (Apple does not support 64 or 128 MB SIMMs, since they were released after the computer and Apple has not verified compatibility.)
  • VRAM: none on motherboard, 2 MB on AV card
  • Video:
    • internal supports thousands of colors at 640 x 480 and 256 colors at 832 x 624
    • AV card supports millions of colors at 640 x 480 and 832 x 624, thousands of colors at 1024 x 768 and 1152 x 870
    • motherboard video uses up to 600 KB of system memory
    • A dead or low-voltage PRAM battery can temporarily kill off built-in video – see Macintosh Computers: Low Battery Can Cause No Video for more information.
  • L2 cache: optional on 6100/60, 256 KB standard on 6100/66, supports 256 KB to 1 MB cache
  • Hard drive: 160-250 MB @ 60 MHz, 350-500 MB @ 66 MHz
  • CD-ROM: 2x standard
  • microphone: standard 3.5mm minijack, compatible with line-level input including Apple’s PlainTalk microphone
  • ADB: 1 port for keyboard and mouse
  • serial: 2 DIN-8 GeoPorts on back of computer
  • SCSI: DB-25 connector on back of computer
  • ethernet: AAUI connector on back of computer, requires AAUI adapter
  • one PDS slot (NuBus adapter available)
  • power: 200W
  • PRAM battery: 3.6V half-AA
  • height: 3.4 in
  • width: 16.3 in
  • depth: 15.6 in
  • weight: 14.0 lb
  • PRAM battery: 3.6V half-AA
  • Gestalt ID: 75

Accelerators & Upgrades

Online Resources

Cautions

  • You cannot upgrade from Mac OS 9.0 to 9.1 using updaters on NuBus models. You muse use a full installation CD for OS 9.1.
  • We’re dead serious about recommending matching RAM when upgrading the 6100 – see Memoirs of an UberNewbie: Always crashing in the same car to learn what happens if you don’t match SIMMs.
  • Outside of California, Apple discontinued support and parts orders for this model on 1 January 2001. You may be able to find dealers with parts inventory either locally or on our parts and service list.
  • Beware bogus 256K cache module AP2544-02 – it doesn’t do anything on the 6100 or 7100.
  • The fan filter for the 610 and other models that use the same case is inside the power supply. Sometimes a “bad” power supply can be repaired by clearing the dust out of the mesh screen near the fan.
  • This case has poor air circulation, which can cause replacement hard drives or accelerators to overheat. If this happens, the first thing to try is removing the small horizontal insert on the back. If this fails, look into replacing the fan in the power supply (contact Newark Electronics at 1-800-463-9275 for information on their 25cfm fan) or moving the hard drive to the CD-ROM bay (assuming you don’t have a CD-ROM player).
